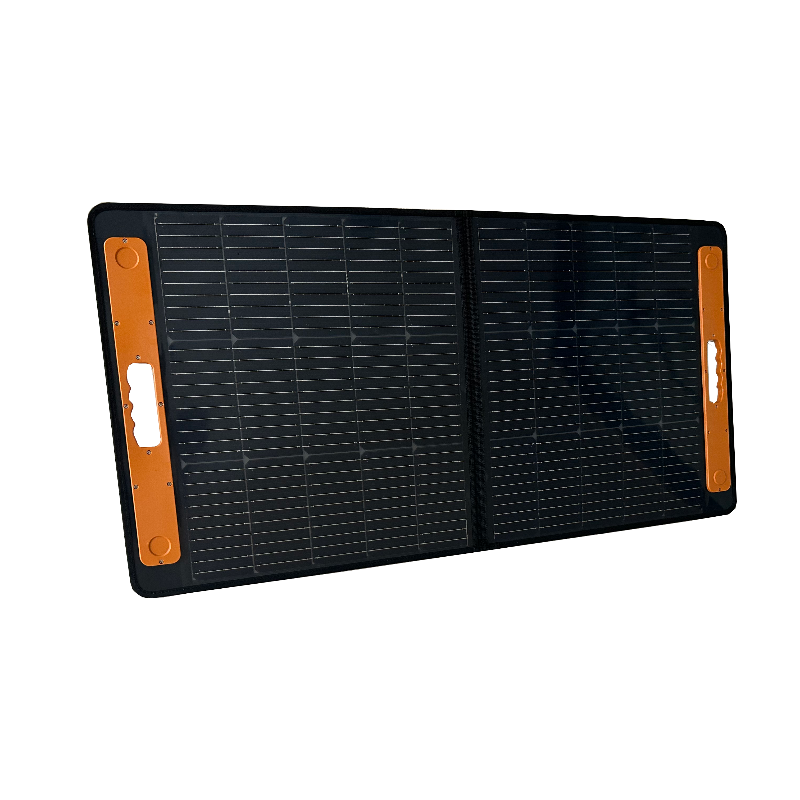

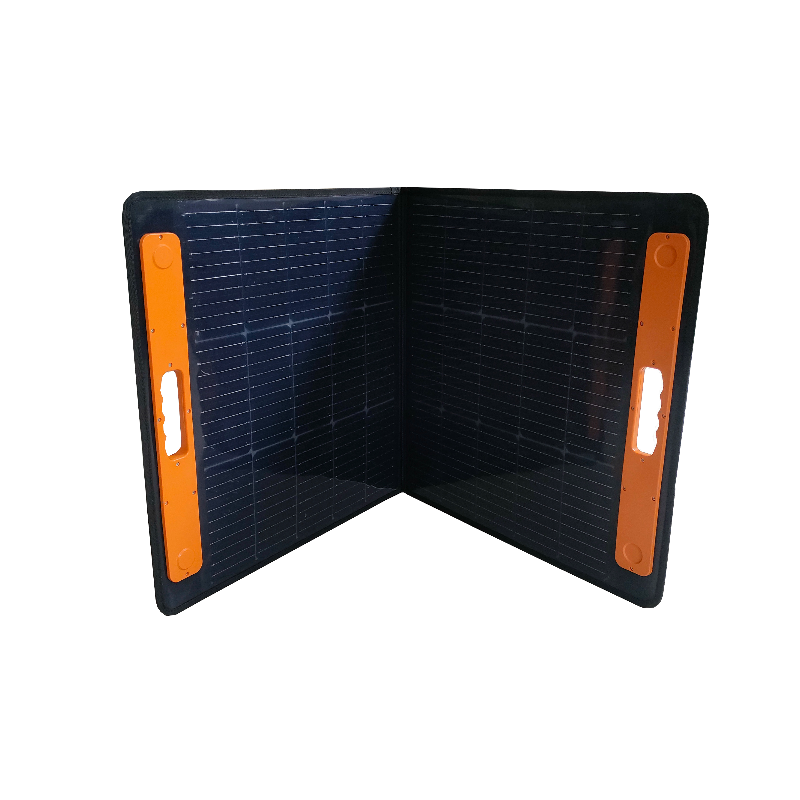

100W B-Portable Folding Solar Panel

126.21

Dimensions : Folded 580x580x60mm

Weight : 3.5 kg

Nominal Power: 100W

Maximum Power Voltage: 17.40V

Model Number SZ-100-FC-B
Nominal Power 100W
Maximum Power Voltage 17.40V
Maximum Power Current 5.75A
Open-circuit Voltage 20.40V
Short-circuit Current 6.09A
Output Tolerance 0~3%
Cell 182*91*5*3*2
DC Output-1 5.5×2.1mm / 5A (Max.)
DC Output-2 XT60 / 30A (Max.)
USB-C PD3.0 5-20V / 3A; 20V5A (Max.)
USB Port-A 5V2A
USB Port-QC3.0 5-20V/3A
Working Temperature  -20~+65℃
Module Dimensions (Folded) 580*580*60mm
Module Dimensions (Unfolded) 1160*580*30mm
Weight(Net /Gross) 3.5/4.1kg
Cable 1*5521 male—1.0mm²-1.5m,
1*XT60 to MC4—2.5mm²-1.5m

Advantages:

The conversion rate of high-efficiency solar cells is as high as 22%;

Intelligent compatible interface. USB-A, 5V2A; Cell phone& computer charger-B, 5V3A;

Used to charge cell phones, laptops, or other USB charging devices.

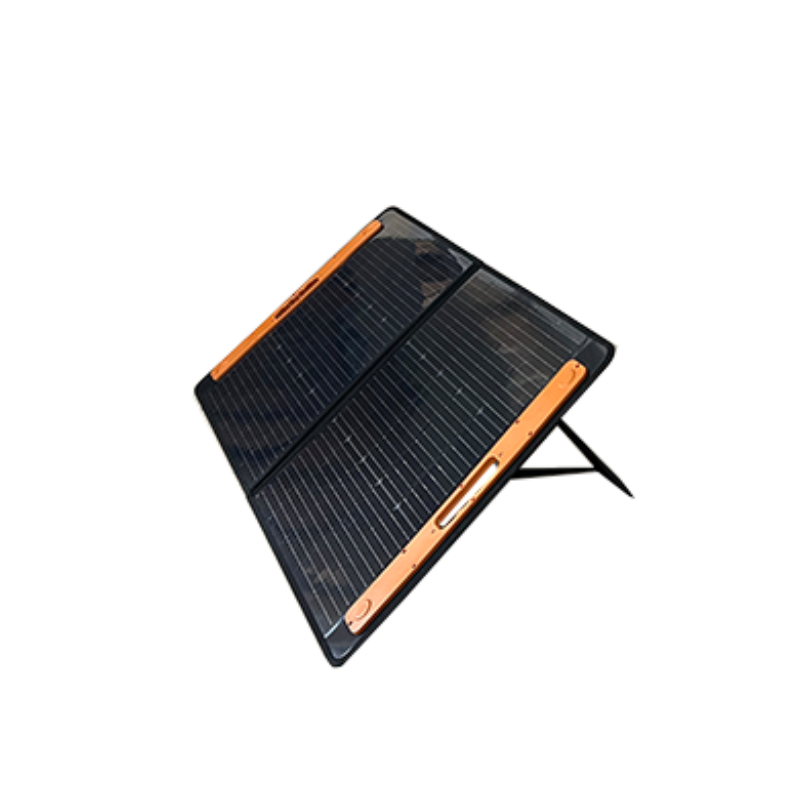

Equipped with the supporting stand, it can directly face the sun and charge the device.

Foldable design, handbag shape, stylish and generous, easy to carry. An ideal choice for camping, hiking, and other outdoor activities.

OEM and ODM supported.


Scope of application:

Prevent the loss of electricity: used on the roof of the car, charge the car battery at any time. Can prevent the car battery from losing electricity, and solve the situation that the car cannot be fired due to the battery loss caused by the long-term parking of the vehicle.

On-board electrical appliances: when using on-board electrical appliances, the original power of the car battery will not lose (car audio, navigator, driving recorder, exhaust fan, car blower, car refrigerator, cell phone, etc.)

Experimental power generation: DIY experiments for schools.
