18.96 €
Battery Voltage: 12V/24V auto adapt
Charge current: 20A

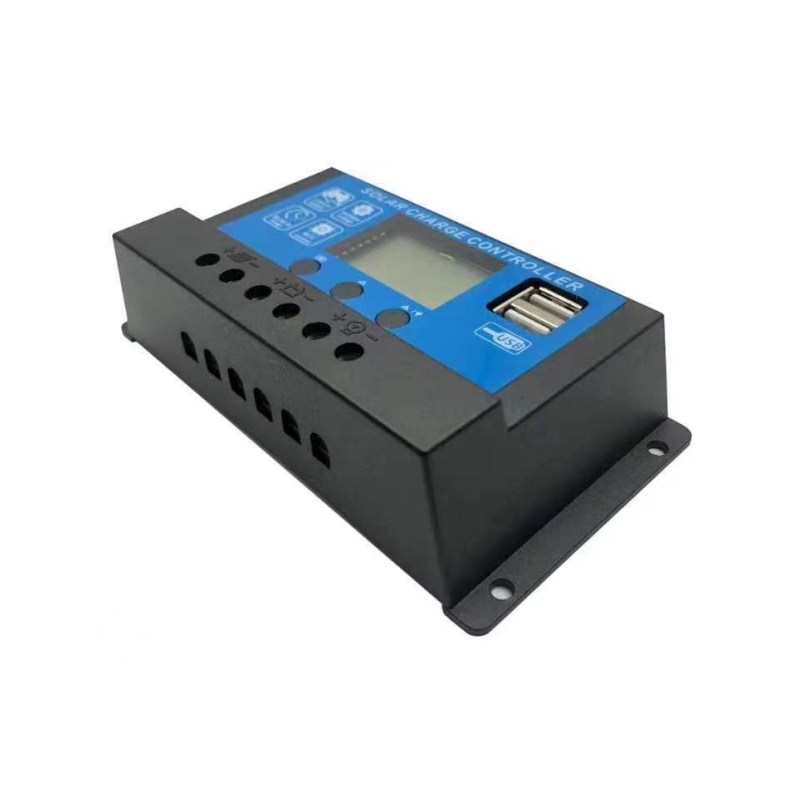

| Model | YJSS20 |
| Battery Voltage | 12V/24V auto adapt |
| Charge current | 20A |
| Discharge current | 10A |
| Max Solar input | <41V |
| Equalization | 14.2V |
| Float charge | 13.7V |
| Discharge stop | 10.7V |
| Discharge reconnect | 12.6V |
| USB Output | 5V/2A Max |
| Standby current | <10mA |
| Control mode | PWM |
| Operating temperature | -35~+60℃ |
| Size/Weight | 133*70*35mm/132g |
Built-in industrial micro controller.
Large LCD display,all adjustable parameter.
Fully 3-stage PWM charge management.
Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.
Dual MOSFET Reverse current protection,low heating disspation.
