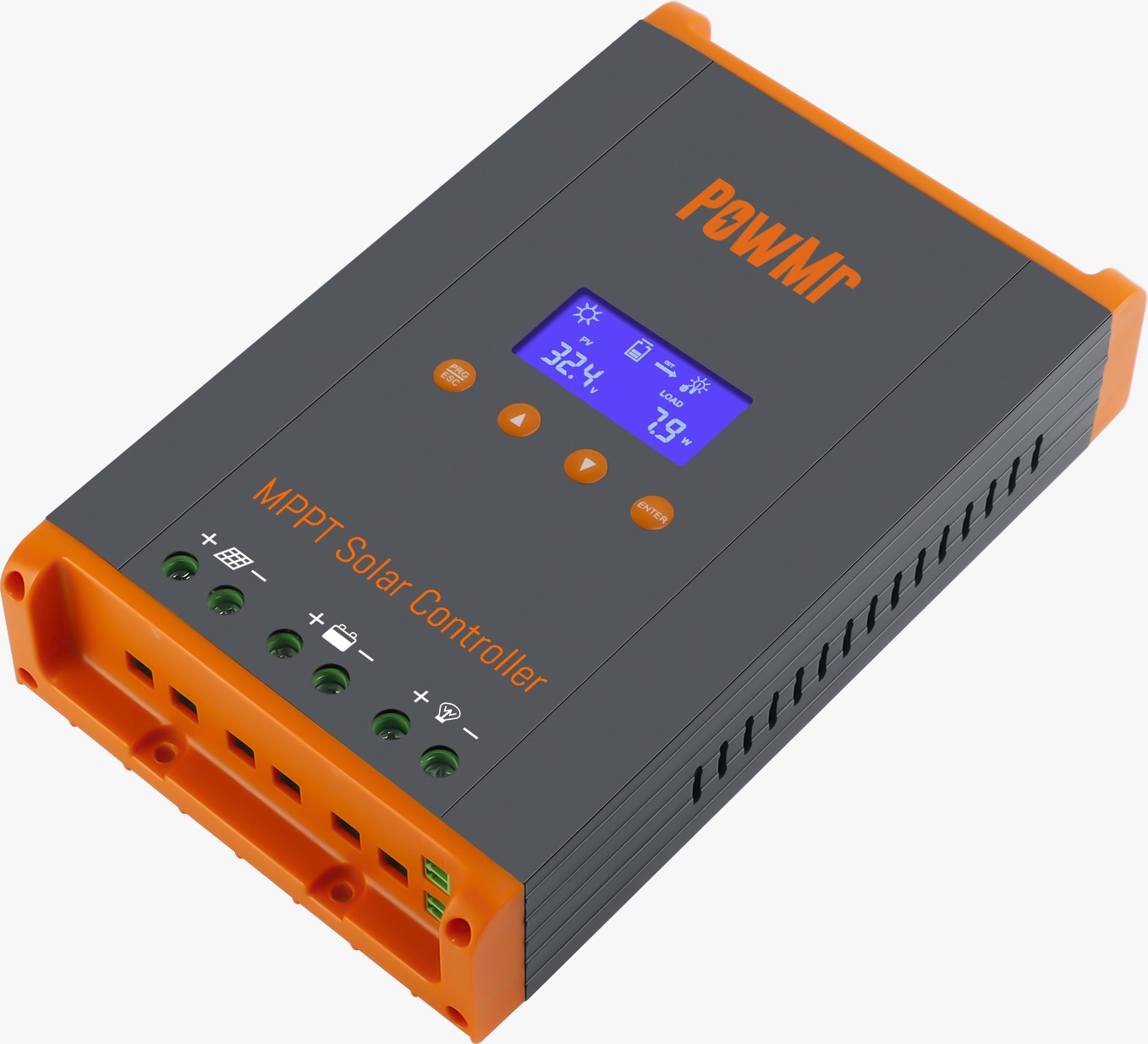

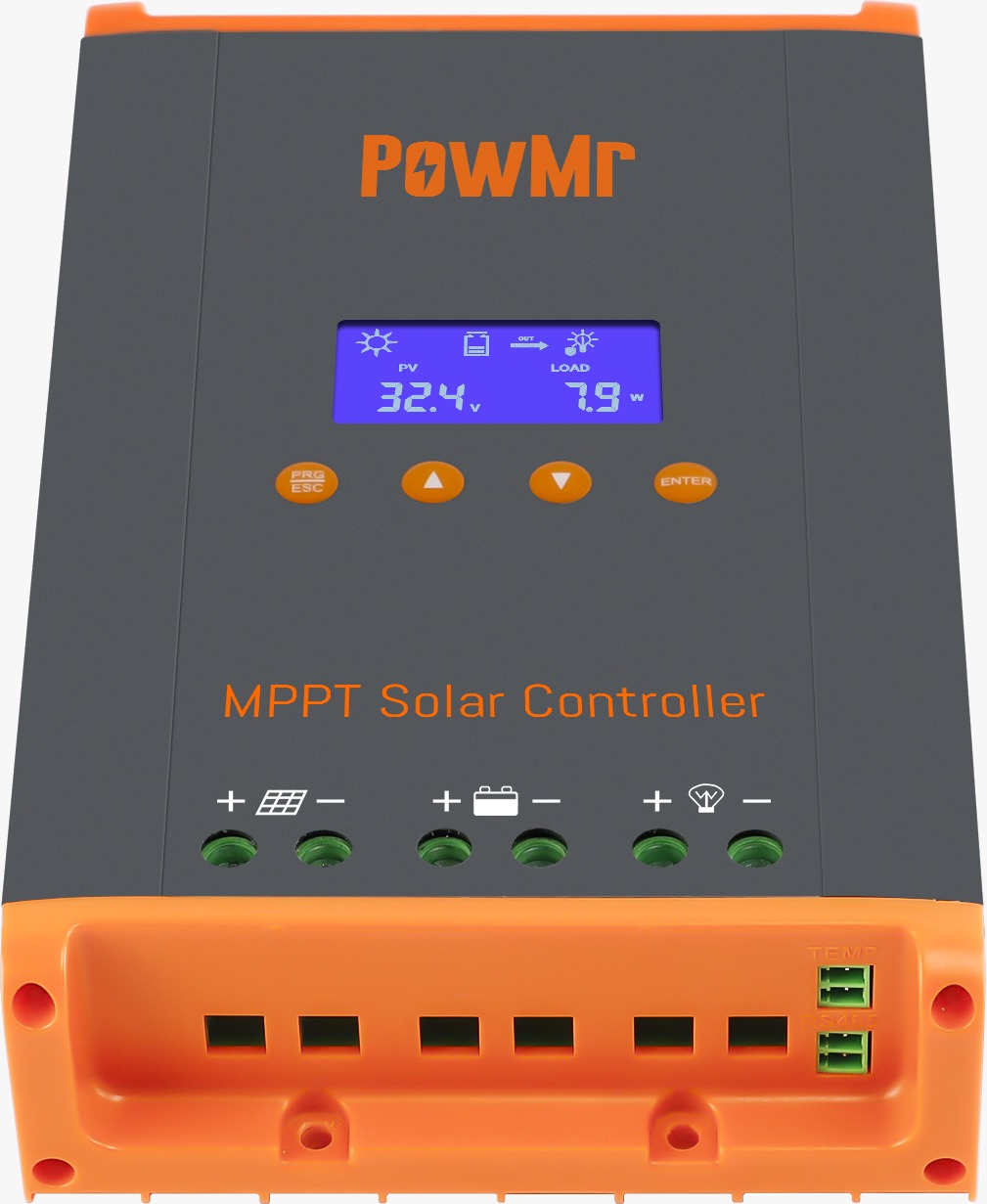

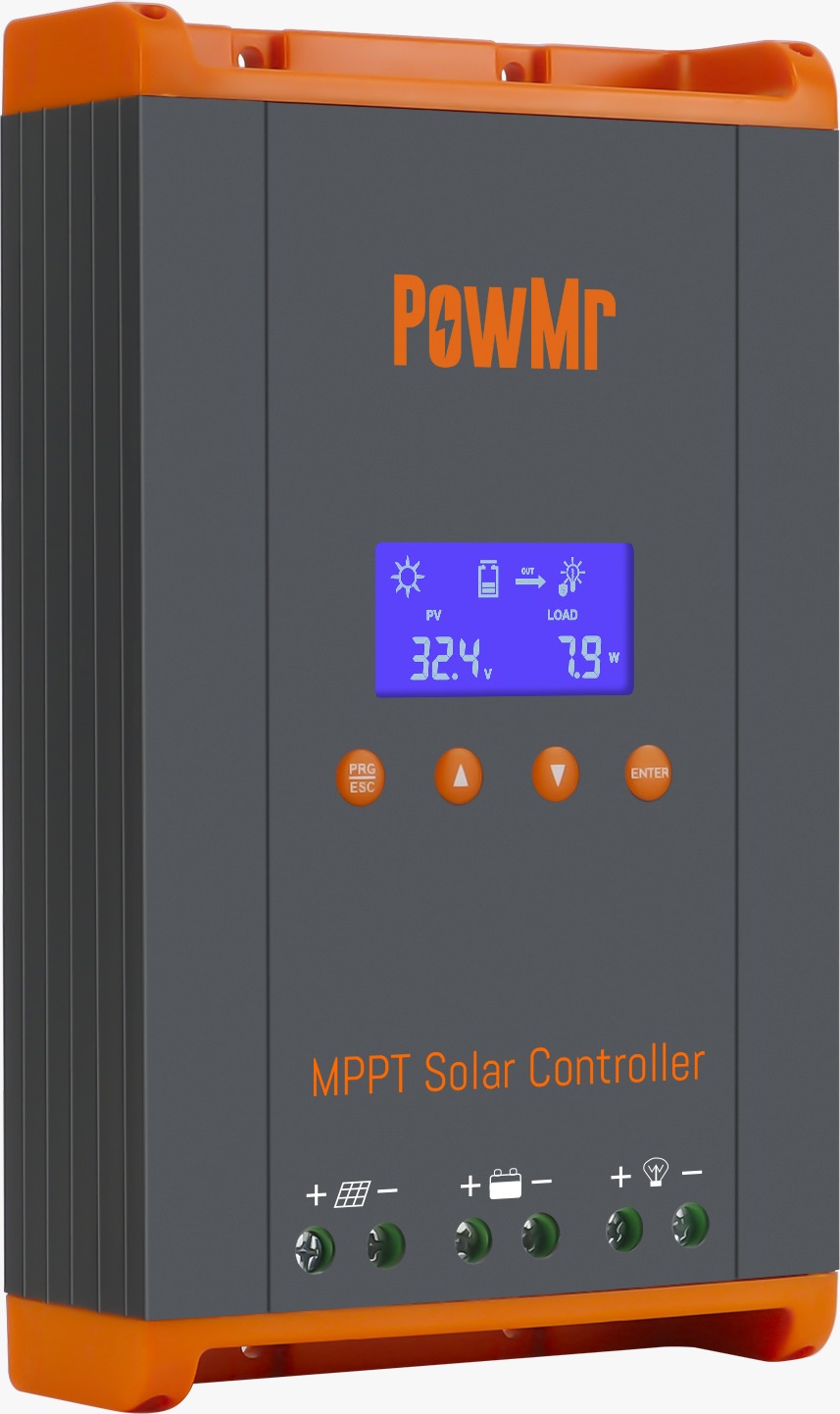

60A MPPT Solar Charge Controller 12V 24V 36V 48V Solar Panel Input 160Vdc Max 12 Units In Parallel Lifepo4 Support 3 Stage
This controller represents advanced innovation in the field of solar technology and is designed to provide exceptional performance and reliability for your solar energy system. The controller is equipped with advanced CNC technology, an LCD display, automated operation, and a Maximum Power Point Tracking (MPPT) battery charging mode. Combined with advanced control technology, it significantly extends the lifespan of your batteries.
Product Features
Software Update MPPT Design 100% MPPT 60A solar charge controller Intelligent, Max efficiency ≥98.1%, PV utilization ≥99%. Built-in DSP controller with high performance Automatic battery voltage detection 12V/24V/36V/48V, Make sure batteries’ voltage more than 12V to boost controller and make sure battery has enough power to Self-detection when connected to the controller
Supports Up to 12 Units in Parallel
The parallel operation function allows for easy expansion of the solar panel configuration and energy storage capacity limits, thus increasing the scale of energy storage. For detailed parallel operation guidelines, refer to Section 7.
Forced Air Cooling
Built-in cooling fan for forced heat dissipation, improving overall device operational efficiency.
Lithium Battery Activation
Compatible with lithium batteries. When the battery type parameter is set to lithium batteries, the charging cycle will be adjusted to accommodate the needs of lithium battery charging. Additionally, when connected lithium batteries are in a protected state, the controller will activate the lithium batteries with the energy from the solar panels, with current not exceeding the lithium battery
protection voltage and current range.
Full System Protection Backlight LCD Dispaly PV voltage/output power/Battery voltage/charging current/working ode/Temperature. ☀ TROUBLESHOOTING function and LCD display and can help users not only check the whole system operating data and statuses but also quickly identify system faults and modify parameters
Product Specification
|
Models
|
HHJ60-PRO
|
|
Solar Input Parameters
|
|
|
Max. Solar Array Open-Circuit Voltage
|
160V
|
|
Maximum Input Power:
For 12V System
For 24V System
For 36V System
For 48V System
|
720W
1440W
2100W
2800W
|
|
Input Voltage Range:
For 12V System
For 24V System
For 36V System
For 48V System
|
20V~80V
37V~105V
50V~160V
72V~160V
|
|
Battery Charging Parameters
|
|
|
Charging Technology
|
MPPT
|
|
Charging Algorithm
|
3 stages
|
|
Battery Voltage Auto-Detection
12V System
24V System
36V System
48V System
|
DC9V~DC15V
DC18V~DC29V
DC30V~DC39V
DC40V~DC60V
|
|
Overcharge Protection Voltage
|
60V
|
|
Charging Limit Current
|
61A
|
|
Maximum Efficiency
|
≥98. 1%
|
|
Solar Utilization Rate
|
≥99%
|
|
Load Terminal Output
|
|
|
Rated Output Current
|
6A
|
|
Maximum DC Output Current
|
8A
|
|
Protection
|
|
|
Temperature Protection
|
75℃ / 167 ℉
|
|
Fan Start Temperature
|
>45℃ / 104℉
|
|
Fan Shutdown Temperature
|
<40℃ / 95℉
|
|
General Specification
|
|
|
Electromagnetic Compatibility
|
EN61000, EN55022, EN55024
|
|
Protection Level
|
IP21
|
|
Operating Temperature
|
-20℃ ~ +55℃ / -4℉ ~ 131℉
|
|
Storage Temperature
|
-40℃ ~ +75℃ / -40℉ ~ 167℉
|
